What are the components and principles of Servo Press?

January 29, 2025

There are many machines in our lives, and many aspects are now completed by machines. We often see Servo Press, so we know a lot about it. However, the assembly part of Servo Press is relatively complicated, and many people are not very clear about it. Let me introduce it to you below.

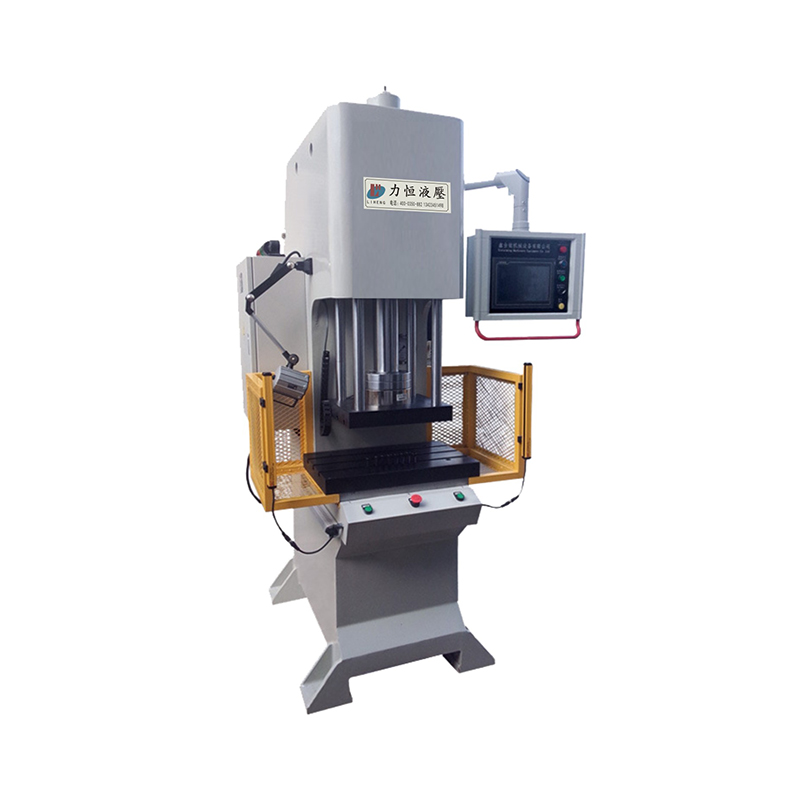

Four-column Servo Press is mainly composed of proportional hydraulic system, operating workbench, bow frame, servo electrical system, upper master cylinder, stamping slide, pressure sensor, pipeline, etc.

1. The main cylinder is a piston-type oil cylinder with a fast cylinder inside, which can complete high-speed downward and slow-speed pressing actions. Improve consumption efficiency.

2． The fuselage adopts a traditional bow-shaped structure, which is similar to a traditional mechanical punch press. It has a simple and compact structure, a small footprint, and is easy to operate.

3. The upper part of the fuselage is equipped with fine positioning devices, mechanical dead limits, and servo adjustment devices.

4．The Four-column Servo Press oil cylinder is an upper cylinder type. When the punching slide works, it presses down from top to bottom, the lower die is stationary, and the upper die is pressed tightly.

5. The electrical system adopts PLC + servo system + touch screen + proportional drive, and cooperates with the proportional hydraulic system to issue instructions according to process requirements to complete the process cycle of the machine.。

6. Fine positioning installation is driven by servo motor. Positioning accuracy is 0.01mm.

7． The position is determined by an electronic ruler, and the travel position can be set arbitrarily. The positioning adopts mechanical dead limit, the positioning accuracy is theoretically ±0.0mm, and the practical positioning accuracy is 0.01-0.02mm.

8. Friendly human-machine interface, 200 sets of parameter programs can be freely accessed.

9. The moving workbench automatically feeds materials.

10. The pressure is detected by a pressure sensor, and the machine pressure can be set arbitrarily.

Advantages of Four-column Servo Press:

1. Power-saving and energy-saving performance: The Four-column Servo Press machine uses a synchronous servo motor to drive the hydraulic pump. When the hydraulic press is not running, the motor is stationary, does not consume power, and does not waste energy. Using the Four-column Servo Press saves 20%-80% of electricity compared to ordinary Servo Press.

2. High-precision positioning function: The Four-column Servo Press can be directly positioned, and the pressure position can be set arbitrarily. It is especially suitable for pressing processes such as press fitting.

3. Fast response: The servo motor is highly flexible, has a fast response speed, and the start-up time is only 0.05 seconds.

4. Low noise: The servo motor has lower running noise than ordinary motors, adjustable speed, and is quieter at low speeds.

5. Low temperature performance: The Four-column Servo Press has no overflow, so the heat generation is extremely small and no cooling system is required.
